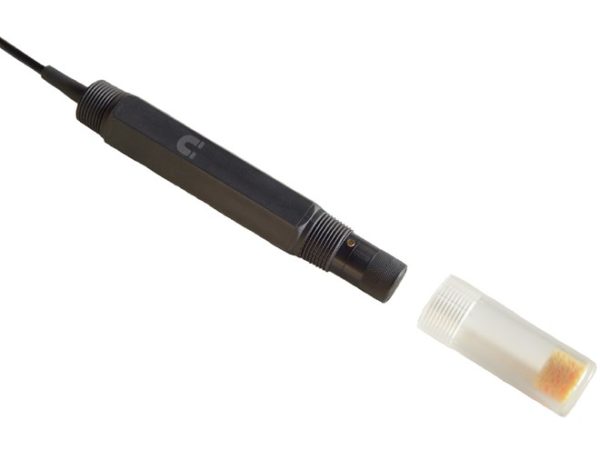

AquaMetrix Optical O2 Luminescent DO Sensor (ODO2)

Description

Aquametrix has been selling polarographic dissolved oxygen analyzers for over three decades. They have sourced the world for a superior sensor that operates using luminescent technology.

This is the only optical dissolved oxygen sensor that outputs directly 4-20 mA for the %-saturation and concentration (mg/l or ppm). It can connect to a PLC or the Aqua-Metrix AM-2300 controller.

Optical DO sensors offer advantages over electrochemical DO sensors in that they are inherently self referencing, require no warm-up period.

These sensors do not require constant flow to maintain a stable reading and are less affected by fouling.

Maintenance is trivial. The sensor membrane lasts for approximately 2 years and is inexpensive to replace. The body is corrosion resistant and designed to stand up to the harsh environment of wastewater.

No sensor on the market packs as much into one small package at such an affordable price.

Applications:

• Aquaculture
• Fish Farms
• Wastewater Treatment
• Sewage
• Boilers
• Fish Farms

• Direct 4-20mA ouput
• Output of %-Saturation and mg/l (PPM)
• No Electrolyte
• Sample Flow Not Required
• Very Rugged
• Replaceable Membrane
• Saltwater Compensation With Toggle
• Not affected by CO2 or H2S

Datasheet

AquaMetrix Optical O2 (ODO2) Luminescent Dissolved Oxygen Sensor Datasheet PDF (705 KB)

Manual

AquaMetrix Optical O2 (ODO2) Luminescent Dissolved Oxygen Sensor Manual PDF (1.91 MB)
