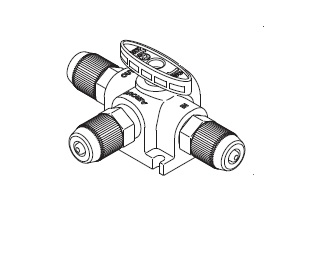

AVC check valve

AVC check valve

94.25$

WOOCS 2.1.7

AVC check valve is designed for being used with the Iwali HRP Metering Pump and works for both
back-flow check and bleeding.

Categories: ,
Quantity:
  • Description
  • Instructions
  • Additional information
  • Test1

Description

AVC check valve is designed for being used with the Iwaki HRP Metering Pump and works for both back-flow check and bleeding.

  • Set Pressure: 0.1 +/- 0.03 MPa*
  • Function change between checking and bleeding: Checking or bleeding can be selected by rotating the air vent valve (knob) 270°.  The rotation limit is determined by stoppers **.
  • Checking: Rotate the air vent valve clockwise as far as it will go.
  • Bleeding: Rotate the air vent valve counter clockwise as far as it will go (limited by a stopper).
  • Applicable pump: HRP

The HRP series is a diaphragm metering pump which consists of a pump head, drive unit and control unit. A diaphragm is directly driven by electromagnetic force.  The use of a check valve prevents a back flow, siphon and overfeeding. In the following cases install a check valve to assure back pressure and a constant flow rate.







AVC check valve

AVC check valve

Additional information

Weight0.05 kg
Dimensions16 × 11 × 5 cm
